Cold Smoke Generator
Wood Pellet Saw Dust Chips Burning With Ice Water Cooler

Inventor's Contact E-mail: sale@allchinas.com Tel No£º(86)13901185127 (China)


Burner ATC WIFI Thermometer Offet Grill Cabinet Smoker Cold Smoke Generator Tent Stove Rotisserie Gallery Sous Vide

Cold Smoke Generator is made from Stainless Steel pipes and can burn wood chips, pellet, branches, and SAW DUST Principle:Inner perforated cylinder is fuel bin of wood pellet, chips, branches, and saw dust. Fuel is lighted on top by a few pieces of hot red charcoal. Air is blown from lower air intake, which passes through circle space between outer and inner cylinders. Also the fresh air enters inner cylinder through holes to burn the fuel. Hot smoke air will rise up and mixe with fresh air. This way smoke temperature is lowered. Fan speed can be tuned stepless by tune AC/DC adapter.

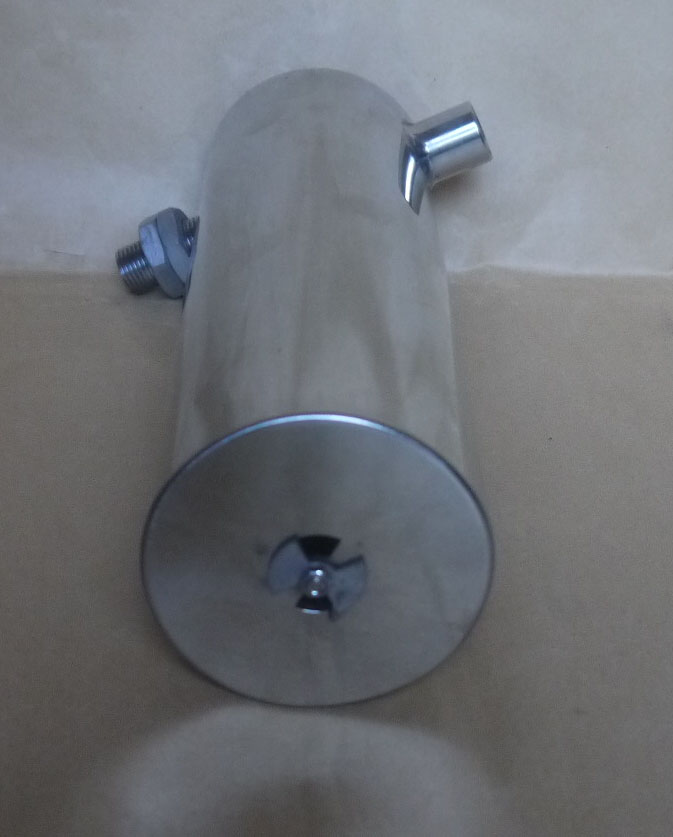

Outer Cylinder
Perforated Inner Cylinder
fan, AC/DC adapter

Type I: Dia.63X300 mm
or Dia.2.5"x12" inches
Fuel Capacity 0.4 Litres
Ex-works US$50
Air and Land(SAL) mail US$40

Type II: Dia.89X400 mm
or Dia.3.5"x16" inches
Fuel Capacity 1.25 Litres
Ex-works US$80
Air and Land (SAL) mail US$60

Super Large
Diameter 5 1/4", Length 20"
Fuel Bin size 7 bls pellet
Price US$120 Free SAL mail
SAL mail US$80

Ice and Water Cooler
Corrugated pipe inside
Dia.89X400 mm or Dia.3.5"x16"
Ex-works US$50

comparasion

Smoke Generator type II
Plus Ice and Water Cooler
ex-works US$120
Air and Land (SAL) mail US$100

Smoker Super Large
Plus Ice and Water Cooler
ex-works US$150
Air and Land (SAL) mail US$130
Why Ice and Water Cooler:The so called COLD smoke generator is not exactly right. When you burn fuels like chips, pellet, saw dust, it must produce heat. Whether positive blowing or backward drafting, you simply mix "COLD" fresh air with hot smoke. You can LOWER temperature of smoke, but you can never get "TRUE" cold smoke unless you are in north and south poles. By Ice and Water Cooler, you get really "COLD" smoke. Ice and Water Cooler can remove heavy components from smoke by condensing them as soot. Your food will taste not too bitter as usual and is more healthy

Videos tell how it works. Video I, , Video II., Video III, With AC/DC adapter Video IV, With AC/DC adapter, variable fan speed. To creat SMOKE, you need somewhat WET fuel. If the fuel is too dry, it will burn in flame rather than creat smoke, please check Result By Dry Wood Pellet

Three In One Cold Smoker-Stove-Fire Box: It is a cold smoker generator when you use wet wood. It is a stove when you use dry wood. It is also an fire box for an offset grill, which can burn step by step and is much easy to control.Video as STOVE, Video Stove with Flue, Video- Smoke Generator

parts pe-assembled
10 CFM fan and AC/DC
adapter is included

With 10 CFM Fan
Variable Voltage
AC/DC adapter
Fan Speed Adjustable

Used as Fire Box
on an offset grill

Used as Cold Smoke
Generator, Temp. is
controlled by fan speed

Used as camping stove
by dry wood

Optional Battery System:Battery, Fan, Speed Regulator are placed inside a Stainless Steel Box. a 12 VDC 2 A.h. Li-ion battery can power the system more than 6 hours. It is Safer and portable than AC/DC adapter. Extra Price Of SS box Speed Regulator US$20,SAL mail cost US$10.
Wiring is simple
battery is not included

Optional Corrugated Pipe System:
While you can attach cold smoker to your smoking cabinet directly, you can also attach cold smoke generator to an Offset grill, or an Vertical Cabinet smoker, or Weber, Or Ceramic Pit by corrugated pipe and adapters accordingly. Length of corrugated pipe 3.3' feet or one meter, diameter is 1" inch or 25.4 mm

Adapter A, B, D

Package#1:Pipe + Adapter A
Ex-works $25, SAL mail $10
Drill a 1" hole on your pit
insert male thread in,
secured by adapter A

Package #2:Pipe + adapter B
Ex-works $30, SAL mail $10
Designed for Ceramic Pit
Slide Adapter B in with
original slider like BGE

Package #3,Pipe + adapter D
Ex-works $30, SAL mail $10
Designed for Weber

About Shipping: List mail cost is for air and surface mail(SAL), which usually takes 3 weeks door to door, but 5 weeks are normal too depending on place you live. List SAL cost is for North American and Australia. Mainland Europe and UK adds 25%. North Europe adds 50%. There is no SAL in New Zealand and mail must be air mail. Air mail adds 70%.

Maybe the Swedish customer's emails can tell how this cood smoke generator

Subject: RE: cold smoker from China
Date: Mon, 21 Nov 2011 10:56:12 +0100


Anyway im VERY VERY VERY satisfied how it work now and very eager to test it with water (then maybe need the pump for airflow and then maybe not need to regulate air with a tap..) I cold smoked salmon and smoked bacon and the result IS better than SD more clean smoke..
And u really can refill with no problem its fantastic and need less watching than SD

IM VERY PLEASED and after some more test think of import some for sell here..

Matts

Subject: RE: cold smoker from China
Date: Mon, 21 Nov 2011 10:36:15 +0100

No now i know i can fill it with water... So i maybe bend it back but it work very good anyway now.. and i dont think i will change position anyway...

I use 3rd hole both bottom and top... can increase so use 4th hole on top and botto,

Best regards
Matts

Sent: Monday, November 21, 2011 5:25 PM
Subject: RE: cold smoker from China

Hi!

Hahahah i didnt think of that my self.. how smart u are Noble prize next :-=)

Anyway the bend of the grate make it swallow more wood and easier to light since it its not totaly vertical...

Matts

Sent: Monday, November 21, 2011 4:40 PM
Subject: RE: cold smoker from China

Hi Wang!

Now i tested the generator for all weekend, feel like im smoked my self.

First, I use it without the watertank and had problem with smoke coming up from generator not it output. I tried to to make cover of the generator airtight but nothing work.
I didn¡¯t need to use the fan at all just smoke much anyway..
Then I see that the grate was too high for the box so I bend it like a little ¡°beer stomach¡± and then it was down like 5mm and that¡¯s what needed..
but cannot use fan too much air anyway if use fan it smoke out of top of generator too much
( I use mix of wood pieces like 1*1,5inch and dust and what we called ¡°flis¡± its around 0,8cm*0,8cm*0,3cm that I have machine for when cutting apple and fruit trees¡­

So then I try the water tank so I was worried about smoke output because of the upsidedown ¡°U¡±. But it worked good anyway, without fan (just use fan for 2 min when start). But I needed to decrease airinput anyway¡­ too much smoke from top of generator and too much ¡°fire¡±, so the perfect thing would be a tap like u have on bottom of tank, but im not sure its same gauge and dimension here??

I used little toilet paper to around 50% of size of inputhole is perfect for a thin blue smoke that fill a frigdesize smoke¡±house¡±. My SD is sometime too much smoke and hard to control down if I do it stop smoke after one hour.. Our generator don¡¯t. And it perfect amount of smoke.. My preference A BETTER WAY!!.. And very good for coldsmoke since I with SD I need to have door open when coldsmoke and with ur I can regulate (if I find a fitting tap) in precision..
I think there is no need for fan.. But think of drilling a hole at the little output downside of the U and connect a little airhose just like SD for give the the output air and extra push. Then u cannot fill the tank full but that doesn¡¯t matter much at all..

I coldsmoke without e at the little output downside of the U and connect a little airhose just like SD for give the the output air and extra push. Then u cannot fill the tank full but that doesn¡¯t matter much at all..

I coldsmoke without watertank and hold around +22C with around +7C outside so with tank its no no problem..

AND NOW THE BIG THING!!
I smoke it from early morning to night and NO PROBLEM at att to refill it, it works nearly even better.. just maybe not refill with too tight material but mix of pieces of wood and dust and ¡°flis¡± work supergood..

So what I need I a tap between the fanoutput and the inputhole in the generator.
Then u can use the fan for starting then close and then regulage by the tap..
Anyway im very satisfied with the result so I need to test it little further and get ur new model, the grate change is probably very good since this one was tricky to use..

Hope for ur answer¡­

Best regards
Matts
