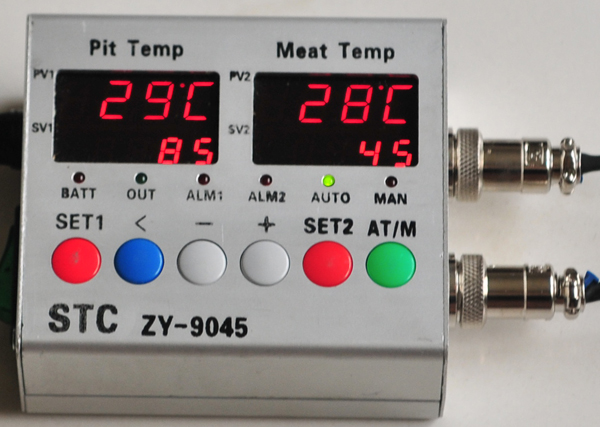

Summary: Working source DC 12V, probes:PT100, temperature range 0-300C Temperature range -50 to 400C for controller, Output: PID 0 to 12V, or simple on/off Control Panel: NO Letter Description 1 PV1 Pit Temp Measured Data 2 SV1 Pit Temp Set Data 3 PV2 Meat Temp Measured Data 4 SV2 Meat Temp Set Data 5 BATT Low Battery Voltage 6 OUT Output Indicate 7 ALM1/ALM2 High/Low temperature Alarm 8 AUTO Automatic Mode 9 MAN Manual Mode 10 SET1 to set Pit Temp 11 < move left 12 - reduce 13 + increase 14 SET2 To set Meat Temp 15 AT/M change between auto/manual

Setting temp.
Press "SET1", PV window will show "SC ,TC,AL,AH,", price "<+-" to set data in SV Window.

Setting Parameter£º
Pres "SET1" for 3 seconds till appearing " F-C", press "SET1", it will show
"F-C>SL1>SL2>Hdc. Set data accordingly,.
Press "SET1" again for 3 seconds bck to main Menu.
Setting Maximum Fan Speed (HDC) in %.

Setting Mimimum Fan Speed(UDC)
Press "SET1" for 9 seconds, till appears "UDC", press "<" till "AUTO" light turns to
green.press "+" or "-" till motor starts to run, press "SET1" to normal display

SET1
P		Default 30
I		Default 240
D		Default 60
UDC	Minimum Speed of blower				Default 0
F-C		0=C 1=F	                             Default 0
HdC		Maximum Speed of Blower              Default 100%


Phase I
SC1		Pit Temps
TC1	    Time
AL1		Low temp.alarm
AH1		High Temp. Alarm
Phase II
SC2		Pit Temps
TC2	    Time
AL2		Low temp.alarm
AH2		High Temp. Alarm

Phase III
SC3  	Pit Temps
TC3    Time
AL3	    Low temp.alarm
AH3		High Temp. Alarm
Phase IV
SC1		Pit Temps
TC1	    Time
AL1		Low temp.alarm
AH1		High Temp. Alarm

When you set SC=0, the following Phase will be ignored.

SET2
P1	Meat Temp.
T	Time for P1, minute
P2	Temp after P1,will keep meat at P2.
P3  Maximum PIT temp.when meat probe dominates

When P1=0, meat probe will be for monitoring only, not for control.
When turn off/on power, it will continue last mode. Say if you set smoking time for 8 hours, if any power interrupt, when power is back, it will continue.
When you press "AT/M", it will forget auto session.


Reset to default
Turn POWER off (0)for 3 seconds
Press¡°<¡± and hold
Turn Power On (-)
¡°8888¡±appears, then disappear, when hear beep, release ¡°<¡°

Remote Set of Tiger

Press "on/off" button to turn on or off the power of the REMOTE SET
Press "AUTO" to select automatic mode or manual mode
When Manual model, press "+" or "-" to adjust speed of fan manually
Press "PIT" to program PIT temperature, time interval, H/L temperature Alarm
Press "MEAT" to program MEAT temperature, time interval.
Use "UP ^" or "DOWN V" buttons to inrease or decrease value
Press button of "C" or "F" to select your display
Press "UP ^" button, you will find window of Energy Management, press "DOWN V" button to SHADOW "Open", Press "UP ^" button to normal dispaly. then the remote set will be on battery saving mode. The power on remote set will be off a short time later and natutally the alarm will be disabled in remote set.
Press "UP ^" button, you will find window of Energy Management, press "DOWN V" button to SHADOW "Close", Press "UP ^" button to normal dispaly. then the remote set will be on all the time. Alarm will be activated.

Common Errors are mostly caused by
LOW voltage/Low Amps on the controller or the remote set
